Stargate
Used basically as a cross, but you can have two people restrained facing each other, or, with one person, get bette access to the front. It also looks way cooler than a cross.
The construction is rock solid, due to the tension in the chains. Then entire stability in the construction comes from the chains.
Files
OpenSCAD file: stargate.scad

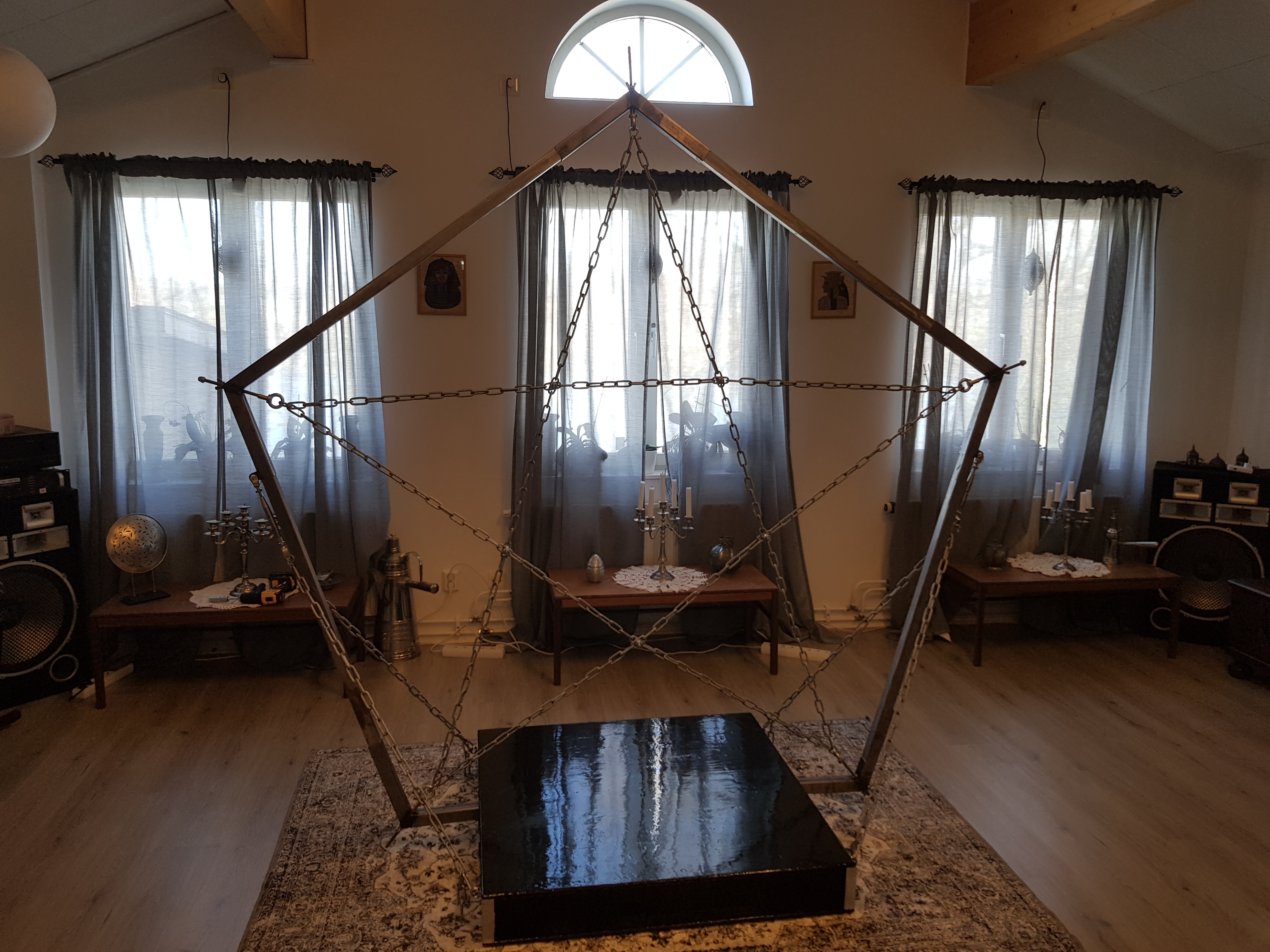

Photos
|
|
|
Animations

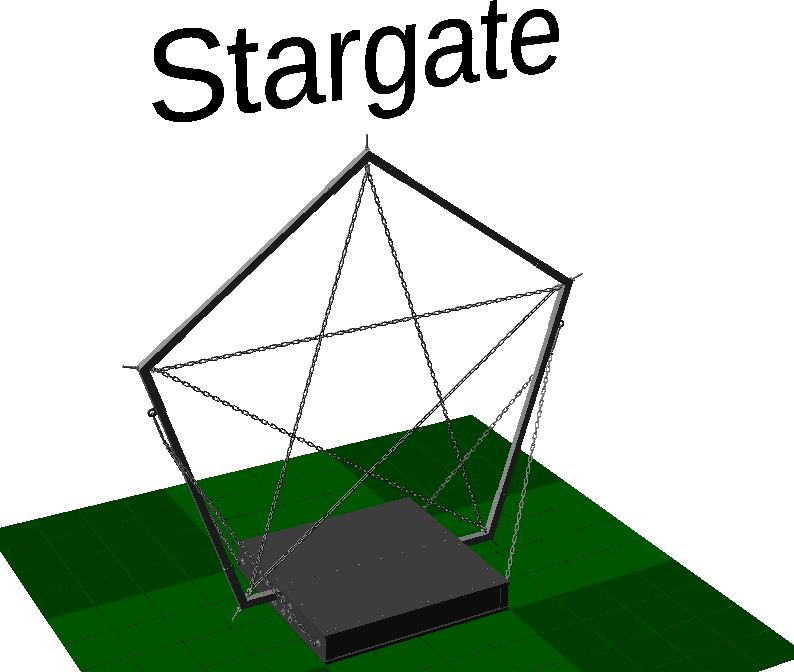

360 degree view animation.
|
Images
View straight from the front.
|
View from the front.
|
Close up of the box and how everything fits together there.
|
The turnbuckles that tensions the chains.
|
The inside of the bottom box.
|
Inspiration
Revision history
2018-03-21 Started tracking revision history.
2023-07-25 Added photo.
